DIN Rail PWM-Driver

This product is End of Life

This product is End of Life

Hardware​

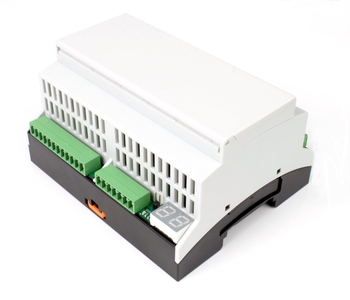

DIN Rail PWM-Driver - 15 Channel PWM-Driver Module

DIN Rail PWM-Driver

Features:

  • 15x PWM-Driver output
  • 8x Binary input for external switches
  • 1x RS485 via BUS connector
  • Numeric display for device address
  • Arbitrary number of modules mountable side by side
  • Easy connection of all modules with BUS connector
  • All modules can communicate via RS485
  • DIN-Rail enclosure: 6 pitch units (div)
  • Other DIN-Rail modules available
  • Input voltage: 24V DC
  • Temperature range from -10°C to +70°C

Railbus Registers / Sub addresses​

Communication is implemented via the DIN Rail BUS Protocol. Available are these registers:

Duty cycles:​

SADR31 - 87 - 0valuesReadWrite
0x110Duty Cycle Channel 1Percent (1-100)XX
0x120Duty Cycle Channel 2Percent (1-100)XX
0x130Duty Cycle Channel 3Percent (1-100)XX
0x140Duty Cycle Channel 4Percent (1-100)XX
0x150Duty Cycle Channel 5Percent (1-100)XX
0x210Duty Cycle Channel 6Percent (1-100)XX
0x220Duty Cycle Channel 7Percent (1-100)XX
0x230Duty Cycle Channel 8Percent (1-100)XX
0x240Duty Cycle Channel 9Percent (1-100)XX
0x250Duty Cycle Channel 10Percent (1-100)XX
0x310Duty Cycle Channel 11Percent (1-100)XX
0x320Duty Cycle Channel 12Percent (1-100)XX
0x330Duty Cycle Channel 13Percent (1-100)XX
0x340Duty Cycle Channel 14Percent (1-100)XX
0x350Duty Cycle Channel 15Percent (1-100)XX

Enable:​

SADR31 - 10valuesReadWrite
0x160Enable Channel 1On/Off (1 or 0)XX
0x170Enable Channel 2On/Off (1 or 0)XX
0x180Enable Channel 3On/Off (1 or 0)XX
0x190Enable Channel 4On/Off (1 or 0)XX
0x1A0Enable Channel 5On/Off (1 or 0)XX
0x260Enable Channel 6On/Off (1 or 0)XX
0x270Enable Channel 7On/Off (1 or 0)XX
0x280Enable Channel 8On/Off (1 or 0)XX
0x290Enable Channel 9On/Off (1 or 0)XX
0x2A0Enable Channel 10On/Off (1 or 0)XX
0x360Enable Channel 11On/Off (1 or 0)XX
0x370Enable Channel 12On/Off (1 or 0)XX
0x380Enable Channel 13On/Off (1 or 0)XX
0x390Enable Channel 14On/Off (1 or 0)XX
0x3A0Enable Channel 15On/Off (1 or 0)XX

Per Group Settings:​

SADR31 - 87 - 0valuesReadWrite
0x1C0Duty Cycle Channel 1-5Percent (1-100)-X
0x2C0Duty Cycle Channel 6-10Percent (1-100)-X
0x3C0Duty Cycle Channel 11-15Percent (1-100)-X
SADR31 - 543210valuesReadWrite
0x1D0Enable Channel 5Enable Channel 4Enable Channel 3Enable Channel 2Enable Channel 1On/Off (1 or 0)XX
0x2D0Enable Channel 10Enable Channel 9Enable Channel 8Enable Channel 7Enable Channel 6On/Off (1 or 0)XX
0x3D0Enable Channel 15Enable Channel 14Enable Channel 13Enable Channel 12Enable Channel 11On/Off (1 or 0)XX

Global:​

SADR31 - 87 - 0valuesReadWrite
0xA00Duty Cycle All ChannelsPercent (1-100)-X
SADR31 - 1514131211109876543210valuesReadWrite
0xA30Enable
Channel 15		Enable
Channel 14		Enable
Channel 13		Enable
Channel 12		Enable
Channel 11		Enable
Channel 10		Enable
Channel 9		Enable
Channel 8		Enable
Channel 7		Enable
Channel 6		Enable
Channel 5		Enable
Channel 4		Enable
Channel 3		Enable
Channel 2		Enable
Channel 1		On/Off (1 or 0) per ChannelXX
SADR31 - 10valuesReadWrite
0xB00Global EnableOn/Off (1 or 0)XX
SADR31 - 10valuesReadWrite
0xB50Temporary Onlyyes or no (1 or 0)XX
SADR31 - 87-0valuesReadWrite
0xBA0Full OnPercent(1-100)XX
SADR31 - 87-0valuesReadWrite
0xBA0Full OnPercent(1-100)XX
SADR31 - 87-0valuesReadWrite
0xC00Max Duty CyclePercent(1-100)XX
SADR31 - 87-0valuesReadWrite
0xC10Min Duty CyclePercent(1-100)XX

Load defaults:​

SADR31 - 0valuesReadWrite
0xFDLoad default valueswrite (1F2E3D4C)-X

Common Railbus Registers:​

Railbus Communication Settings
SADR313029 - 0valuesReadWrite
0xFESuppress CRNLSuppress outputreservedyes or no (1 or 0)XX
Device ID and Address
SADR31 - 87 - 0valueReadWrite
0xFFDevice IDDevice Address-X-
0xFF-Device Addressnew device address-X

Downloads​

Datasheet DIN Rail PWM-Driver
