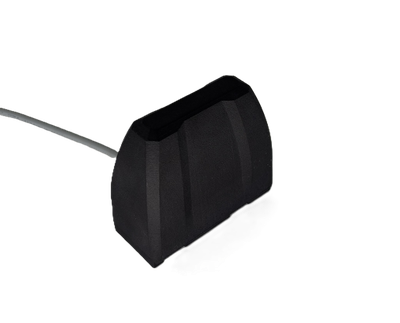

ICPROX-AGVTAG
The ICPROX-AGVTAG makes an automated guided vehicle visible to the ICPROX system. Attached magnetically, it reports itself as an AGV — forklifts carrying ICPROX then detect the vehicle just as reliably as they detect a person.
Fit it where it has a clear view outwards: attach the magnetic mount, connect the supply, done. There is nothing to configure.
Part number 902.219 — Shop
What it is
At heart the AGVTAG is an ICPROX-ANT board programmed as a tag with the role AGV. It is simply connected to the supply of the self-driving vehicle — and from then on forklift drivers see the automated vehicles the way they see people.
An AGV carries no tag on its body. Without an AGVTAG it stays invisible to the vehicle side — unless it is given a complete ICPROX-4R2I vehicle unit of its own.
Features
- Listed in ICPROX-P as an AGV, not as a person
- Magnetic mount — no drilling, no glue
- Supply 8–24 V, taken straight from the vehicle
- No camera, no recording of personal data
Technical data
| Property | Value |
|---|---|
| Part number | 902.219 |
| Detection | recognised as an AGV in ICPROX-P |
| Mounting | magnetic mount |
| Dimensions (L × W × H) | 70 × 30 × 70 mm |
| Weight | 90 g |
| Protection class | IP65 |
| Material | PA12 |
| Colour | black |
| Power supply | 8–24 V DC |
Fitting
- Choose a spot on the vehicle that faces outwards — not between panels or behind metal.
- Attach the magnetic mount.
- Connect the supply to the vehicle's on-board system (8–24 V).
The vehicle then appears as an AGV on the displays of the surrounding forklifts.
