ICPROX-Display

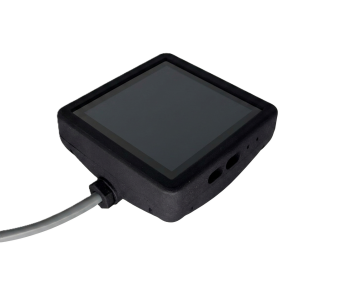

The ICPROX-Display shows the driver what the ICPROX protection system currently sees: people and vehicles nearby appear as dots on a to-scale map, with the configured warning zones drawn around them. The screen colour follows the reduction level, and a built-in loudspeaker sounds a proximity tone whose rate changes with distance.
It connects to the ICPROX-CPU through a single cable, which also supplies its power. All measurement and all decisions happen in the control unit — if the display fails, protection remains fully effective.
Part number 902.217 — Shop — Manual
Features
- Square colour display, 720 × 720 pixels, with capacitive touch

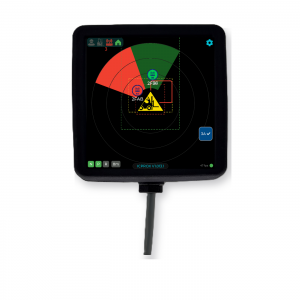

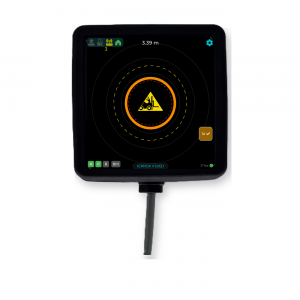

- Real-time map showing distance and direction of every detected tag
- Screen colour follows the reduction level — recognisable from the corner of the eye
- Proximity tone that becomes denser as a person comes closer
- Shows stationary danger points and gates within range
- Tap the status bar for a list of all detected tags
- Connection and power through one single cable
Getting started
- Choose a position within the driver's field of view that does not obscure it.
- Bolt the bracket firmly to dashboard, pillar or console.
- Run the device line to the control unit, away from drive and charging cables.
- Wire it to the device terminals of the control unit — no separate power supply is needed.
- Switch on; the surroundings map appears. Set brightness, volume and vehicle dimensions in the control unit's web interface.
Screen elements, touch operation, colours and sounds and troubleshooting are described in full in the manual.
Technical data
| Property | Value |
|---|---|
| Part number | 902.217 |
| Screen | 720 × 720 pixels, IPS, colour |
| Operation | capacitive touch |
| Sound | built-in loudspeaker, adjustable volume |
| Connection | one cable to the ICPROX-CPU (RS485, twisted pair, shielded) |
| Power supply | through the device line from the control unit |
| Mounting | dashboard, pillar or console |
| Firmware update | through the control unit, without removal |
