ICPROX-KEY

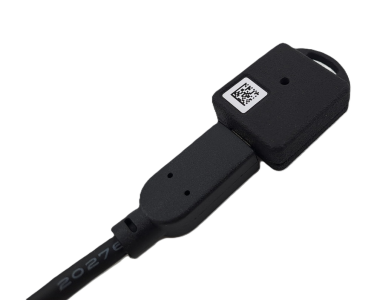

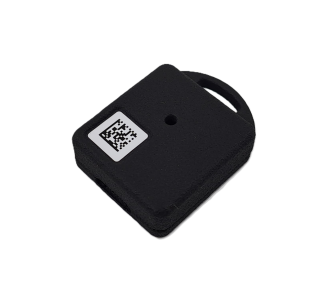

The ICPROX-KEY is the key to setting up an ICPROX vehicle. It has neither buttons nor a display: as soon as it is powered over USB and near the vehicle, the ICPROX-CPU enables its ICPROX-Setup web interface.

Remove the key and the set-up network disappears again — so during everyday operation the vehicle does not broadcast an open Wi-Fi network.

Part number 902.230 — Shop — Manual

Features

• Enables the web interface of the control unit while it is present
• Powered through the permanently attached cable: USB Micro-B at the key, USB type A at the other end — power bank, laptop or charger
• No cabling to the vehicle, no installation, nothing to operate
• Effective throughout the area around the vehicle (roughly 10 to 20 m)
• Compact key-fob design with a permanently attached cable

Getting started

1. Plug the USB connector into a power bank, laptop or charger.
2. Place the key near the control unit — no line of sight is required. The control unit then brings up its access point.
3. Open the Wi-Fi list on a smartphone or laptop and join ICPROX-Setup, or scan the QR code on the vehicle display.
4. Open the browser and use the web interface: settings, connected devices, firmware updates.
5. Unplug the key when finished — the set-up network is switched off again.

Behaviour with several vehicles nearby and troubleshooting are described in full in the manual.

Technical data

Property	Value
Part number	902.230
Operating principle	proximity detection via 2.4 GHz Wi-Fi
Effective range	approx. 10–20 m
Power supply	USB Micro-B
Cable	approx. 40 cm, permanently attached
Controls	none
Dimensions (L × W × H)	35 × 30 × 12 mm
Weight	5 g
Material	PA12
Colour	black

Downloads

• Manual (HTML, English/German)
• Complete ICPROX manual (PDF, English)
• Gesamthandbuch (PDF, deutsch)

Note: Treat the key like a real one — whoever holds it can change a vehicle's settings.
