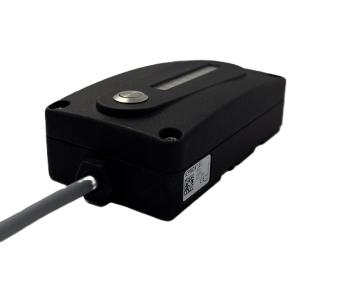

ICPROX-SEC
The ICPROX-SEC checks who is allowed to move a vehicle or open a door. It reads RFID cards without contact and passes the rights stored on the card on to the ICPROX system. Without a valid card the safety circuit stays open and the vehicle will not move off.
The rights live on the card, not in the reader — a new driver simply receives a card written accordingly, and nothing has to be changed on the vehicles. Cards are written with the ICPROX-SECW desktop unit (902.206B) and the ICSecManager Windows software.
Part number 902.206 — Shop — Manual
Features
- Contactless reading of common RFID cards to ISO 14443 (13.56 MHz)
- Rights stored on the card, configurable per device
- Vehicle mode: the card is presented once and applies for the whole shift
- Door mode: short-term release, expiring within a few seconds if unused
- Eight-way indicator for reading, authorisation and vehicle state
- Input for an external push-button, for example to open a gate
- Connection and power through one single cable
Getting started
- Mount the reader within easy reach — on a vehicle near the driver, at a door at hand height — and not directly onto a large metal surface.
- Wire the device line to the ICPROX-CPU on a vehicle, or to the ICPROX-4R2I at a door.
- Connect the external push-button if a gate or danger point is to be switched.
- Write the rights onto the cards with the ICPROX-SECW desktop unit.
- Present an authorised card and check the response, then verify with a card that is not authorised.
The rights model, the indicator colours, vehicle and door mode and troubleshooting are described in full in the manual.
Technical data
| Property | Value |
|---|---|
| Part number | 902.206 |
| Card format | ISO 14443, 13.56 MHz |
| Reading distance | a few centimetres, contactless |
| Rights management | stored on the card, configurable per device |
| Indicator | 8 × multi-colour LED |
| External push-button | 1 × volt-free contact |
| Connection | RS485, twisted pair, shielded |
| Power supply | 8–24 V DC |
| Accessory | ICPROX-SECW (902.206B) desktop unit with ICSecManager software |
| Dimensions (L × W × H) | 110 × 66 × 35 mm |
| Weight | 75 g |
| Material | PA12 |
| Colour | black |
Downloads
Note: Access control prevents unauthorised persons from driving off. It is not a substitute for a mechanical safeguard against a parked vehicle rolling away.
