Legacy products

These products are End of Life

radino Modules

Board	Pictures	Description
radinoL4 DW1000		for Ranging and RTLS, Ultra Wideband (UWB), IEEE802.15.4-2011 compliant, 3.5-6.5GHz, 23 GPIOS, I²C, SPI, 2xUART, USB
radino32 nRF8001		Bluetooth v4.0 compliant, 23 GPIOS, I²C, SPI, 2xUART, USB
radino32 WiFi		802.11 b/g/n, integrated TCP/IP protocol stack, 23 GPIOS, I²C, SPI, 2xUART, USB

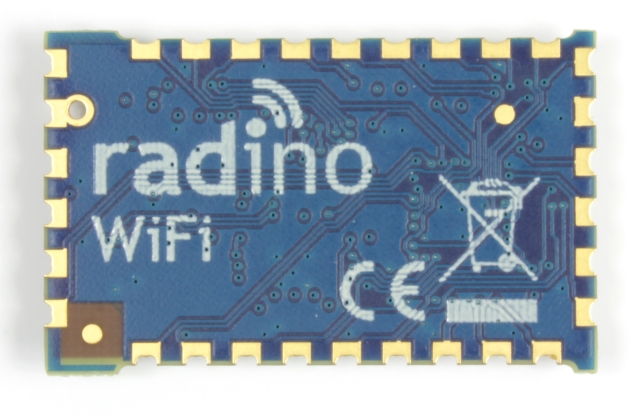

radino WiFi		802.11 b/g/n, integrated TCP/IP protocol stack, 15 GPIOS, I²C, SPI, UART, USB HID
radino nRF8001		Bluetooth v4.0 compliant, 15 GPIOS, I²C, SPI, UART, USB HID

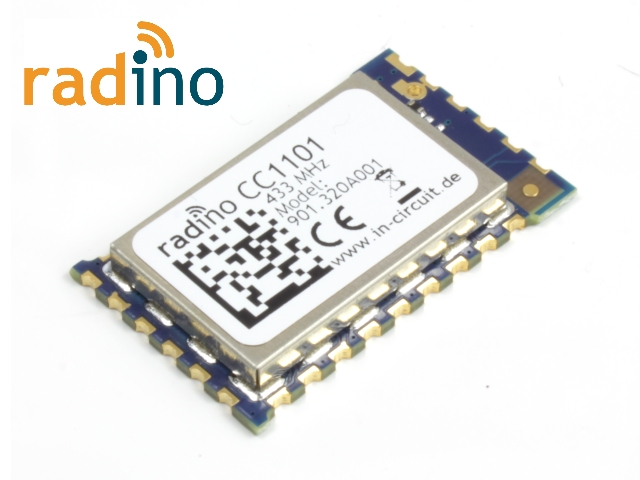

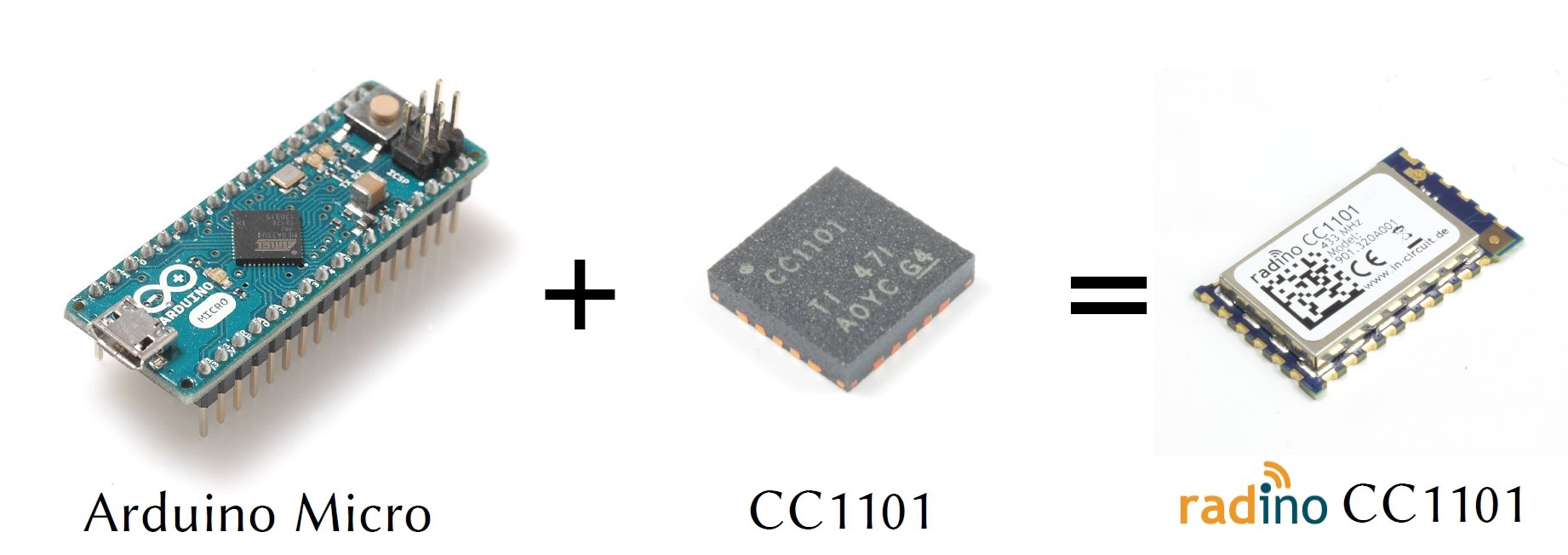

radino CC1101		integrated CC1101 HF frontend for 433/868/915MHz, 15 GPIOS, I²C, SPI, UART, USB HID
radino RF69		integrated RF69 HF frontend for 433/868MHz, 15 GPIOS, I²C, SPI, UART, USB HID
radino RF233		integrated RF233 HF frontend for 2.4GHz, 15 GPIOS, I²C, SPI, UART, USB HID
radino UART-Bridge		UART bridge with power supply and level shifters for all radino modules

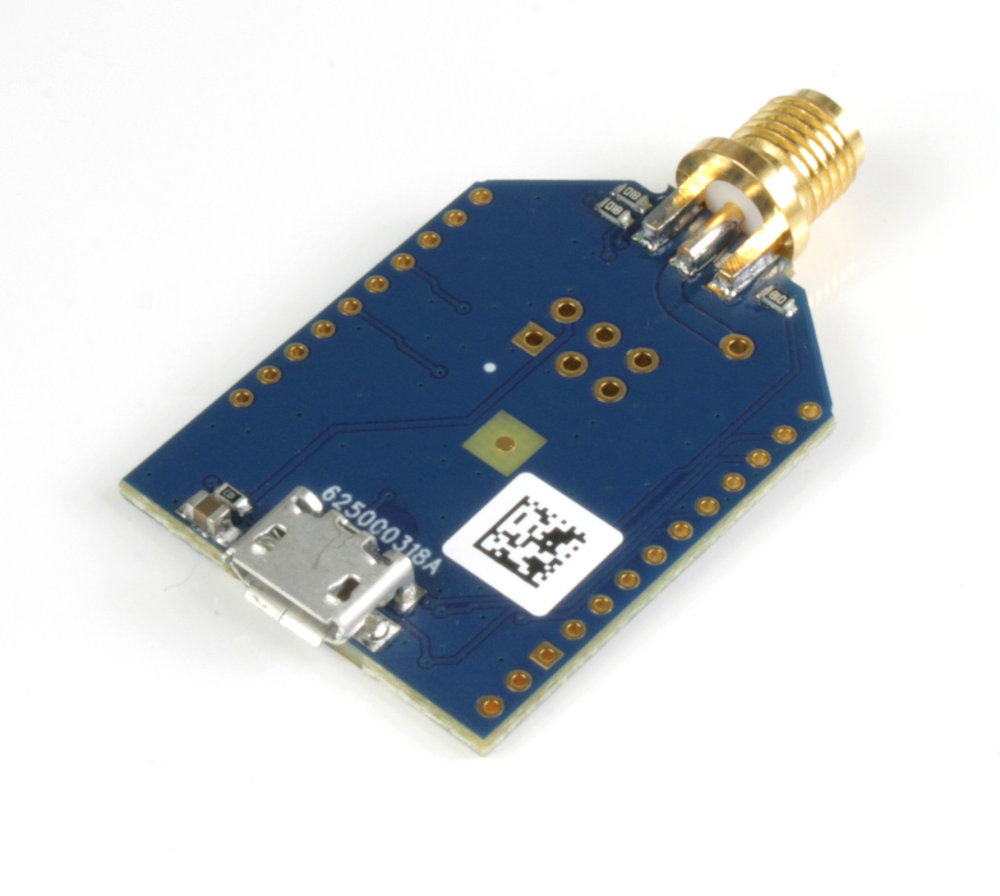

XBee-PRO Shield		XBee Pro adapter for all radino modules
radino DinRail Adapter		DinRail Adapter connects our RS485 DinRail Bus System to radino modules
radino Watch		Battery powered wearable smart device

radino/radino32 based products

These products are based on our radino, radino32 and radinoL4 series.

Product	Pictures	Description
DW1000 Anchor		Anchor for Ranging / RTLS applications with radino32 DW1000 Ultra Wide Band module.
DW1000 Tag		Tag for Ranging / RTLS applications with radino32 DW1000 Ultra Wide Band module.

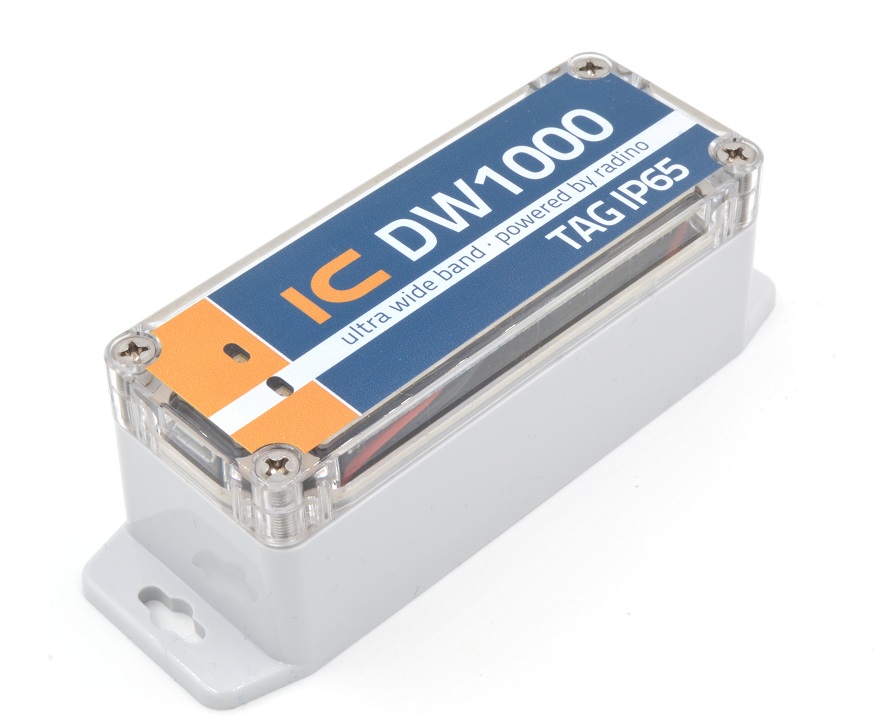

DW1000 Tag IP65		Tag for Ranging / RTLS applications with radino32 DW1000 Ultra Wide Band module in an IP65 enclosure.

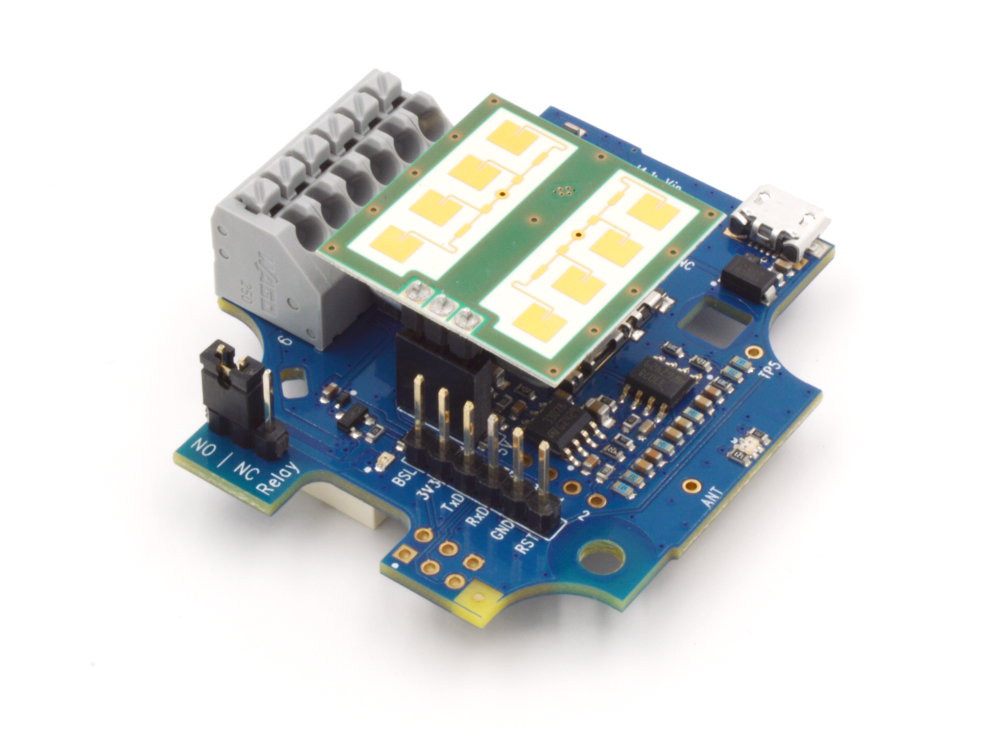

radino IP65-Radar		Free programmable radar sensor module for relative speed measurement and motion detection with the RSM-1650 radar sensor.

DIY / open source

Our DIY / open source projects are exemplary applications for our radino Modules.

Project	Pictures	Description	Notes

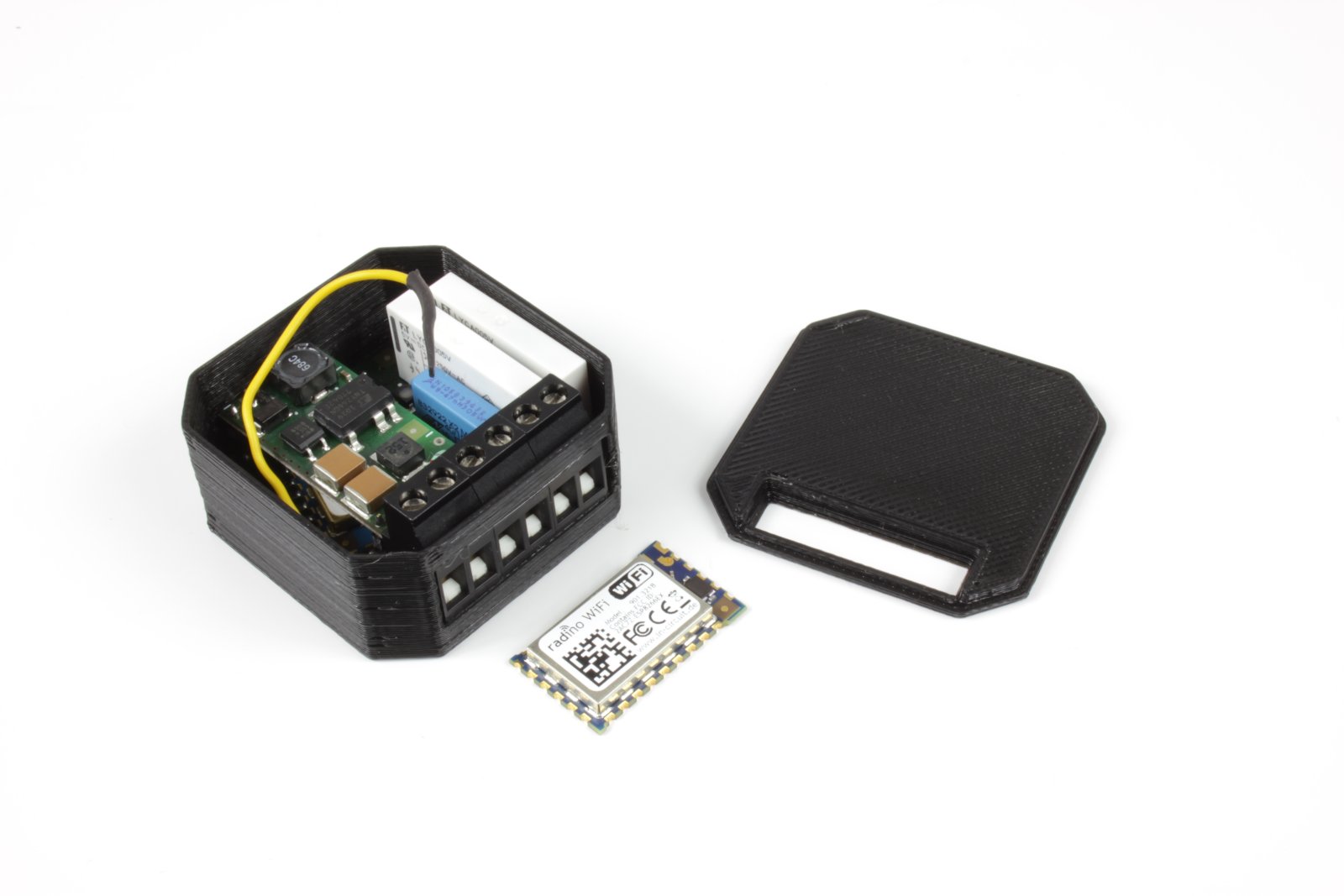

Open Source Blinds Controller		Open Source Blinds Controller: radio controller for blinds, garage doors, window openers...

3D Printer

Product	Pictures	Description

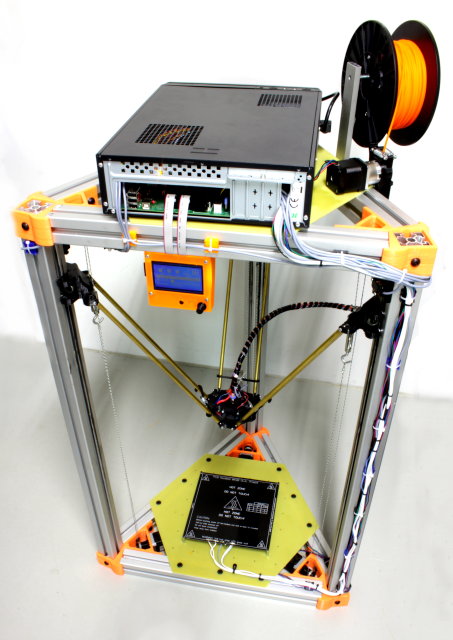

3Dino		Low budget stand alone Delta 3D-Printer

ICnova CPU-Modules

Module	Description	Main features	Notes
ICnova AP7000 OEM	Atmel AVR32 AT32AP7000, 140MHz	no USB Host	AP7000 discontinued, only few in stock
ICnova AP7000 OEMplus	Atmel AVR32 AT32AP7000, 140MHz		AP7000 discontinued, only few in stock
ICnova AP7000 Base	Atmel AVR32 AT32AP7000, 140MHz		AP7000 discontinued, only few in stock
ICnova SAM9G45+XC3S700AN OEM	Atmel ARM9 AT91SAM9G45B, 400Mhz	Integrated SPARTAN 3AN FPGA
ICnova SAMA5D36 SODIMM	Atmel ARM CORTEX-A5, 536MHz	2xEthernet, CAN
ICnova i.MX535 SODIMM	Freescale i.MX535 with Cortex-A8 at 1000MHz 512MB Ram, 8MB NOR, 4GB NAND, IGP	2xSDC
ICnova i.MX536 SODIMM	Freescale i.MX536 with Cortex-A8 at 800MHz 512MB Ram, 8MB NOR, 4GB NAND, IGP	2xSDC, CAN
ICnova i.MX353 OEM	Freescale i.MX353 ARM11, 533MHz

Application Development Boards

ADB	Supply voltage	Main features	Notes

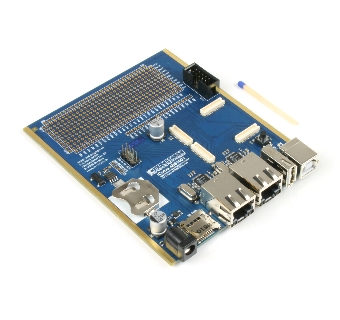

ICnova ADB1001
ICnova ADB1002
ICnova ADB1003			development halted
ICnova ADB1004		for all ICnova CPU modules with OEM-shape (ICnova SAM9G45 OEM, ICnova iMX353 OEM...)	development halted
ICnova ADB3000	5V DC	TFT Touchscreen connector, I2C, integrated OpenOCD adapter and UART Bridge, GPIO pin headers
ICnova ADB4000	24V DC	TFT Touchscreen connector, 2x SDC, 3x RS485, RS232, CAN, I2C, RTC, Buzzer, 5x Digital IN, 2x ADC, Soundcard, 2x socket for ICRadio module
ICnova ADB4001	24V DC	PSoC µC io-extender, DVI connector, 7" Touch display, RS485, RS232, CAN, 2xADC, DAC, Relays out, Buzzer, Soundcard, Video IN, 2xSDC, 2x socket for ICradio-ZWIR4512-OEM modules	No Hardware CAN with iMX535
ICnova ADB4003	12-24V DC	2x Ethernet, TFT-Touchscreen connector, 2x RS485, RS422, RS232, CAN, I2C, RTC, Buzzer, GPIO pin headers

ADB1002 DVI

DIN Rail Modules

All our rail modules are connectable with BUS connectors.
Over this bus, the modules share a 24V power supply and are connected via RS485.
On the RS485 connection the DIN Rail BUS Protocol can be used for communication.

Module	Width	CPU/MCU	Features
DIN Rail Radioadapter	1TE
DIN Rail CPU 61	6TE

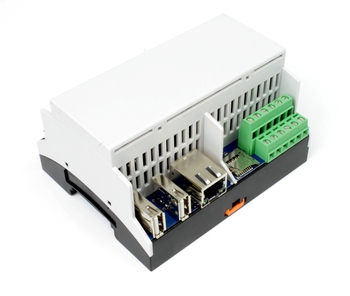

DIN Rail CPU 60	6TE	ICnova i.MX536 SODIMM	Cortex-A8@800MHz, 4GB NAND-Flash, Linux BSP, Ethernet, RS485, RS232, CAN, USB, Digital Inputs, DAC, ADC
DIN Rail Relais 6I6S	6TE	ATXMEGA 128	6x Digital input, 6x Relays output

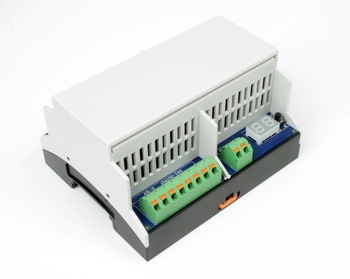

DIN Rail ADDA 6I4O	6TE	ATXMEGA 128	4x Digital input, 6x ADC input, 4x DAC output
DIN Rail LED-Dimmer	6TE	PSoC 3
DIN Rail PWM-Driver	6TE	PSoC 3	15x PWM-Driver output, 8x Digital input

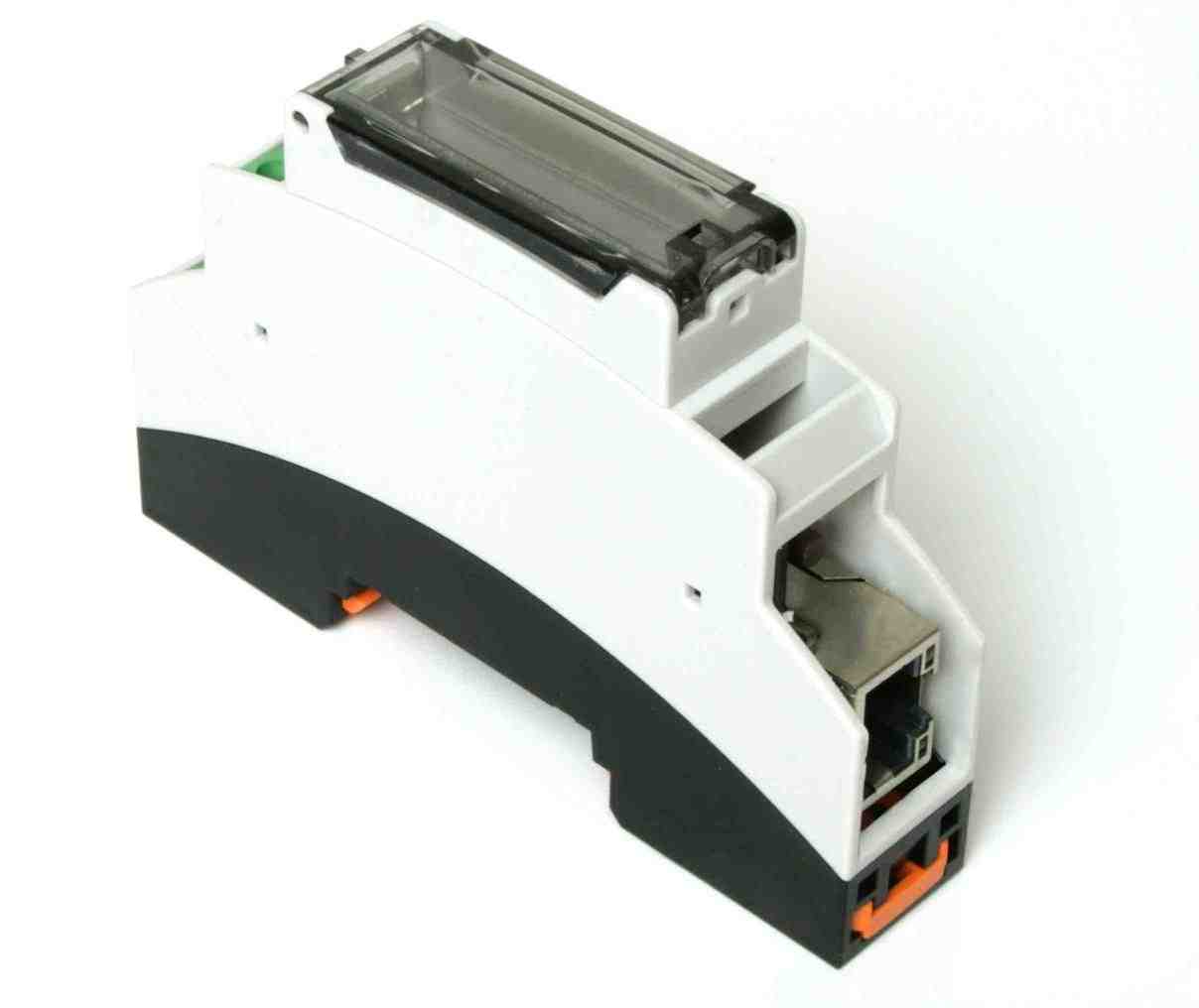

DIN Rail CPU 10	1TE	ICnova SAM9G45 OEM	ARM9@400MHz, 256MB NAND-Flash, Linux BSP, Ethernet, RS485
radino DinRail 6S2I	1TE	radino32 WiFi preinstalled	6x Relays output, 2x Digital input

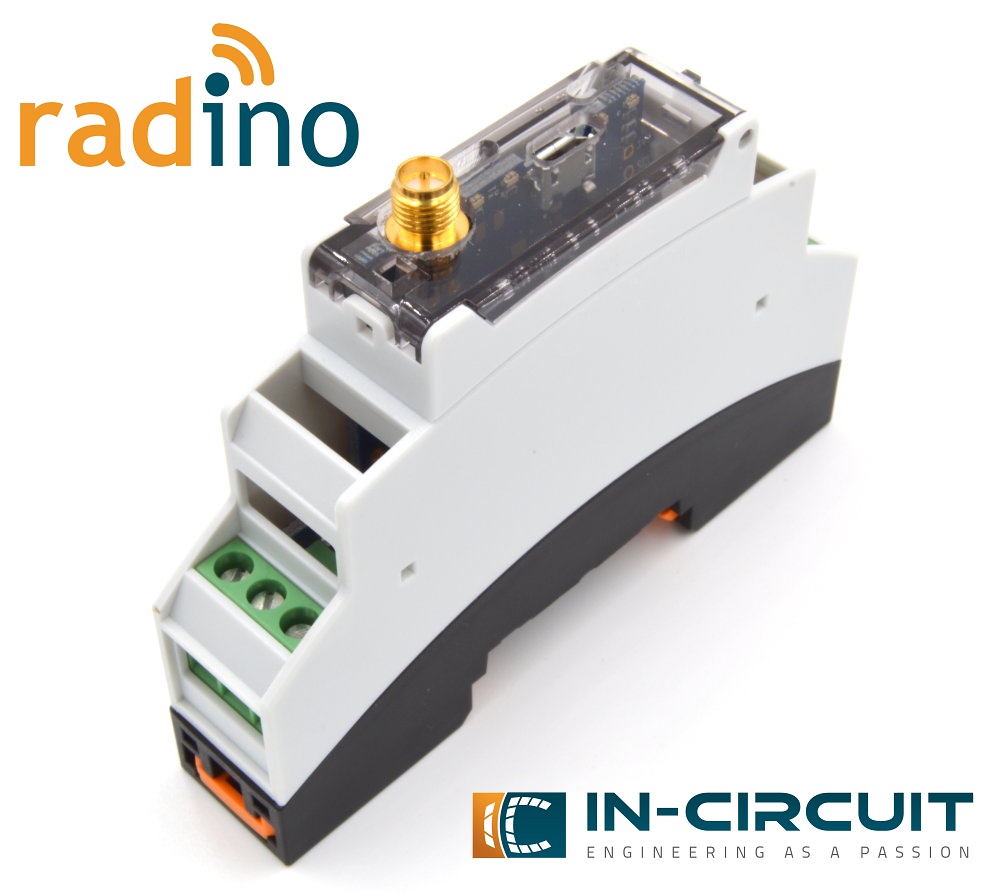

radino DinRail Adapter	1TE	suitable for all radino modules	DinRail Adapter to connect any radino Modules

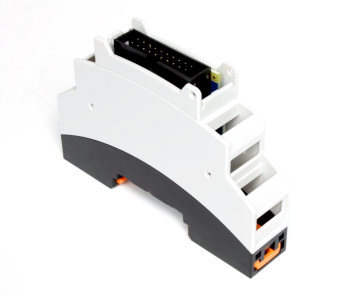

DIN Rail BUS Extender	1TE		Connect separate rails
DIN Rail BUS Auskoppler	1TE		External connectors for 24V supply and RS485
