radino40 DW1000 USB-Stick
Hardware
radino40 DW1000

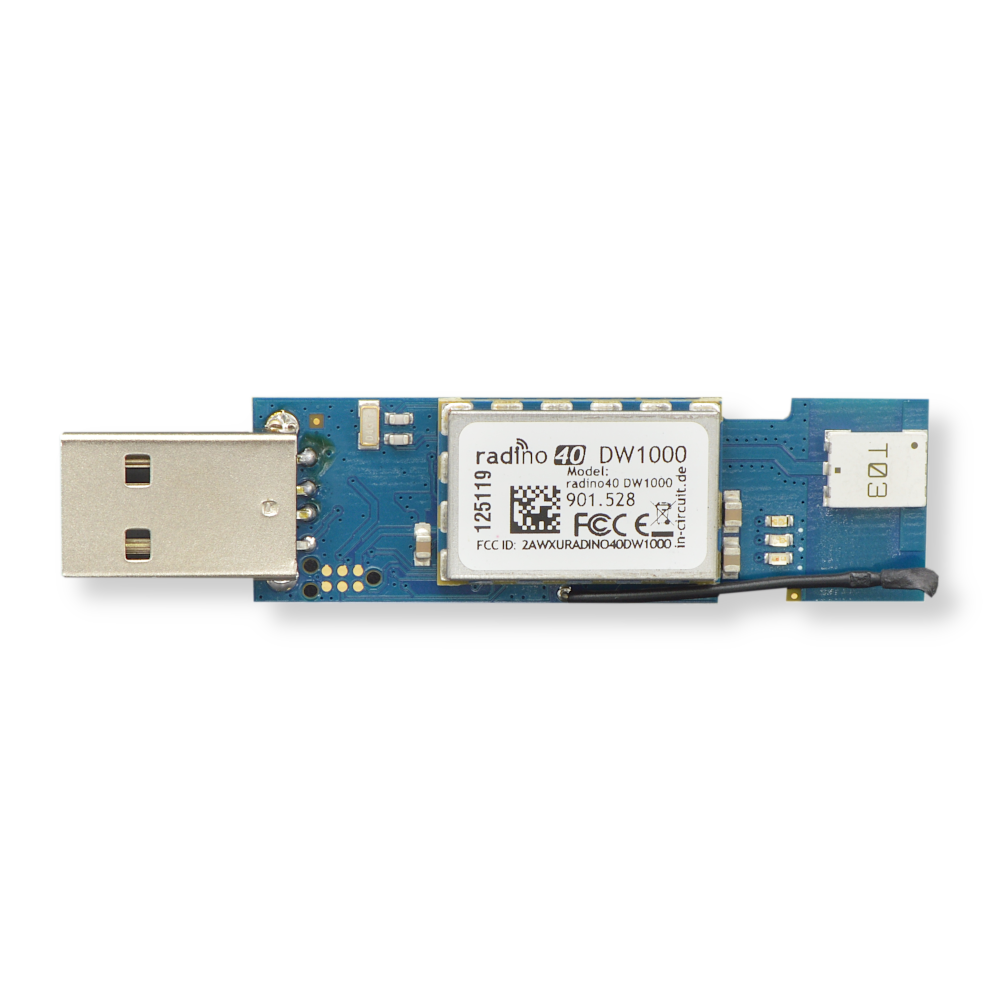

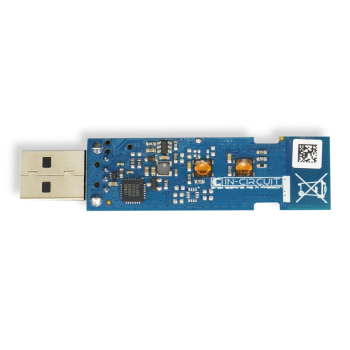

The In-Circuit radino40 DW1000 USB-Stick combines a radino40 DW1000 module with UWB- and Bluetooth®-antenna and USB-A plug to form a compact USB device.
Features:
- radino40 DW1000 module installed
- USB-A plug
- UWB chip-antenna & Bluetooth® -antenna
- 3 user LEDs (freely configurable)
- Input voltage: 5 VDC (USB)
- Onboard 3.3 V regulator

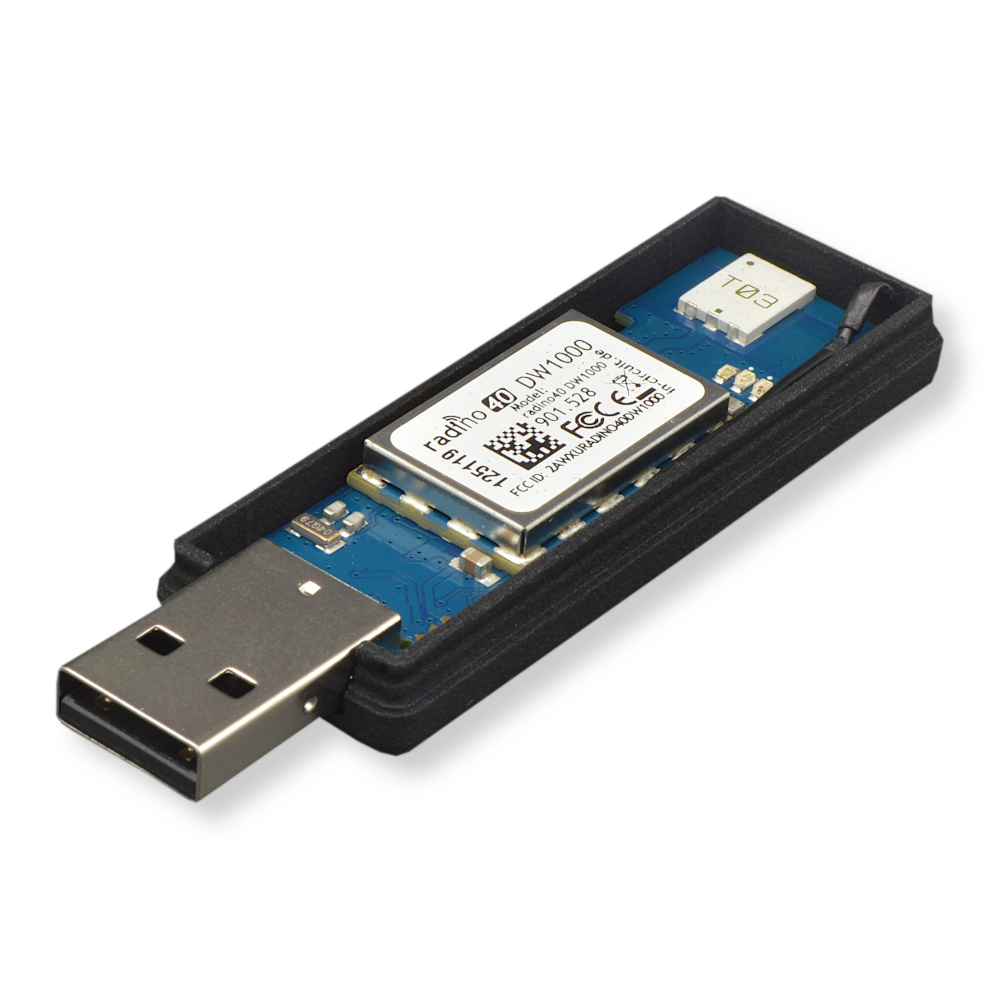

- Dimensions with enclosure (LxWxH): 73x25x11 mm
- Reset- and user-button
- 6-Pin TC2030 CTX Plug-of-NailsTM SWD connector for programming and debugging
Suitable radio modules
The board carries the radio module radino40 DW1000 soldered on. Other radino40 modules are available on the carrier boards Spider RP-SMA and Stick RP-SMA.
