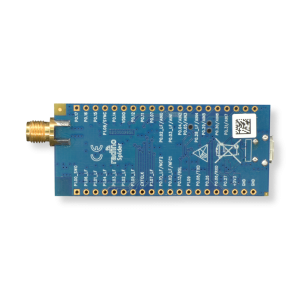

radino40 Spider RP-SMA
Hardware
The In-Circuit radino40 Spider RP-SMA connects all radino40 modules to two pin rows in 2.54 mm pitch for quick application development.
Features:
- 3.3V voltage regulator
- USB micro socket
- 6-pin TC2030 TCX Plug-of-Nails™ SWD connector for programming and debugging
- 2 buttons
- 4 LEDs
- RP-SMA connector for an external UWB antenna
- Bluetooth® antenna
- Most IOs of the radino40 module are routed to breadboard-compatible pin headers (2.54mm) (20-pin headers)
Software
Visit radino40_DW1000#Software for more information about the radino40 toolchain.
Suitable radio modules
The Spider takes every radino40 radio module. The shop offers:
| Radio module | Radio technology | Part number |
|---|---|---|
| radino40 CC1101 433 MHz | Narrowband, 433 MHz | 901.614A001 |
| radino40 CC1101 868 MHz | Narrowband, 868 MHz | 901.614 |
| radino40 DW1000 | Ultra-wideband | 901.528 |
| radino40 DW3000 | Ultra-wideband to FiRa | 901.620C |
Downloads
Schematic radino40 Spider RP-SMA
Datasheet radino40 Spider RP-SMA (305000193A)
See also
- SpiderR40ESP32C3 – carrier board with a second processor, ESP32-C3, USB-C and solder pads
