ICnova SAM9G45 OEM - ultra small size meets highest performance

Artikelnummer 901.182B — Shop

ICnova SAM9G45 OEM

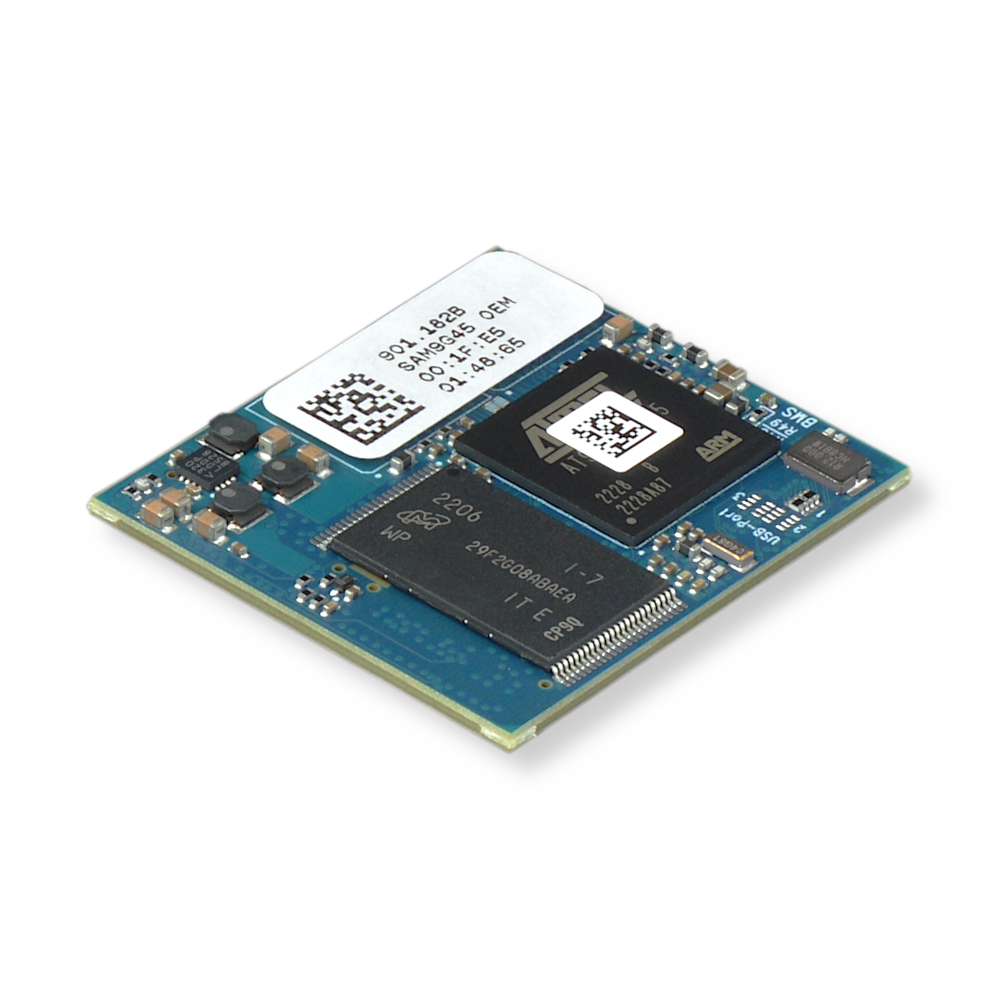

By using the ICnova SAM9G45 OEM module there is no need to develop a multilayer pcb for external components. The board is ready to go and needs only a single power supply voltage of 3.3V to 5V. It can easily be snapped into the matching sockets.

The device is equipped with an Atmel AT91SAM9G45 MCU or its sister MCU Atmel AT91SAM9M10. It operates with an ARM926EJS core at 400MHz CPU clock.

A free Eagle Library is available in the downloads section.

Features:

Atmel ARM9 AT91SAM9G45B processor with up to 400 MHz CPU clock
128MB DDR2-RAM
1MB NOR-Flash
256MB NAND Flash
1xHigh speed (480MBit) USB Host
1xHigh speed (480MBit) USB Device (configurable by software as 2nd Host)
Voltage regulators for 3.3V and 1.8V core voltage
All peripherals are accessible on connectors
Extreme compact design with 40x35mm overall size

The ICnova SAM9G45 OEM can be ordered at our Shop.

Suitable application development boards

In-Circuit offers a wide range of Application Development Boards that can be used to develop your products and solutions while reducing your development time.

These evaluation boards help you to evaluate the features and performance of selected products and system solutions. Our evaluation boards demonstrate optimized and tested solutions for your application design. These boards are designed mainly for your evaluation, design and testing purposes.

Basically all our ADBs feature: Ethernet, USB-Host, USB_Device, SDC
Exceptions to this are listed in the Notes column of the following table.

The table below shows the suitable Application Development Boards (ADB) for the ICnova SAM9G45 OEM.

ADB	Picture	Supply voltage	Main features	Notes
ICnova ADB1000		10-36V DC	TFT Touchscreen connector, 2x RS485, RTC, I2C, Buzzer
ICnova ADB1004				development halted

Software

All Modules provided by In-Circuit usually have a Buildroot based system preinstalled, so they can be used out of the box.
Login as "root" for which no password is set.

If you are new to kernel building please refer to First Steps with Buildroot.

The board support package contains all sources required to build the linux image for the ICnova SAM9G45 OEM on the ICnova ADB1000.
The most recent version is listed at the bottom of this page. Other versions can be found on the Downloads page.

Generally the bootloaders on our modules are configured to look for a bootable linux image on the SD-Card and only boot from flash if none is found.

On the ICnova SAM9G45 OEM the bootloader u-boot is preinstalled on the on-board flash.
