radino DinRail 6S2I
This product is End of Life
Hardware

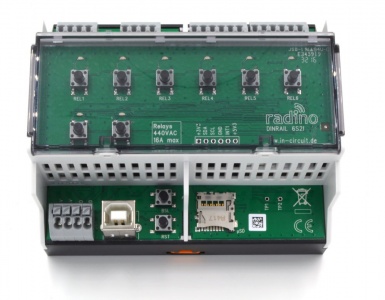

radino DinRail 6S2I
The In-Circuit radino DinRail Adapter incorporates an RS485 driver and
a radino module socket to connect any radino module to the Din Rail Bus.
Combined with radino, this adapter is completely Arduino compatible.
Features:
- radino32 compatible (radino32 WiFi preinstalled)
- RS485 Interface
- 2x digital Inputs
- 8x Buttons, 6x for relay, 2x user
- 6x relays, 16A/440VAC each
- IO-expander for relay, LEDs and buttons via I2C
- µSD card slot
- connector for Li-Ion accu 3.7V with 2.54mm JST-Connector
- integrated Li-Ion loader for the optional accu
- Vin: 8-24VDC
- temperature range: -10°C - +70°C
Software
Visit radino/radino32 software for more information about the Arduino IDE and installation.
For detailed information about our library for the Arduino IDE look at the radino Library documentation.
