Radino nRF8001

This product is End of Life

This product is End of Life

Hardware​

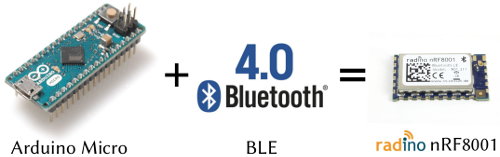

Arduino micro + BLE = radino_nRF8001

The In-Circuit radino nRF8001 combines an Arduino Micro with Bluetooth-Low-Energy(BLE)
in a small form-factor EMC-compliant enclosure. It is part of our family of pin-to-pin compatible radino Modules.

It's part of the radino-series, which provides full-Arduino-compatible wireless communication devices
in a small form factor, all pin-compatible to each other.

Features:

  • Arduino-compatible (Arduino Micro / Leonardo)
  • Bluetooth low energy SDK for Arduino by Nordic Semicond.
    (https://devzone.nordicsemi.com/arduino/)
  • Bluetooth v4.0 compliant Protocol Stack (BLE)
  • 15 GPIOs (5 PWM, 5 Analog IN)
  • I²C, SPI, UART
  • USB (HID Keyboard & Mouse, virtual UART)
  • High-Performance, Low-Power Microcontroller
  • GATT, GAP, L2CAP, SMP Bluetooth low energy Profile
  • Selectable output power: 0dBm, -6dBm, -12dBm or -18dBm
  • Receiver sensitivity (ideal transmitter): -87dBm

Suitable application development boards​

BoardPicturesDescription
radino Leonardoleonardo 45.jpg
Leonardo moduleinlegen.jpg		Carrier board suitable for all radino modules. Includes Arduino connector for easy mounting of Arduino shields. Voltage regulator and Level-Shifters are also included.
radino Spider 2.4G
radino Spider RP-SMA		radino-spider top.jpg
radino-spider-rpsma top.jpg		Breadboard adapter for all radino modules
radino USB Stickradino-usb-stick 45.jpg
radino-usb-stick enclosure.jpg radino-usb-stick top.jpg radino-usb-stick bot.jpg		USB Stick for all radino modules. Available with integrated Chip-antennas and as a version with RP-SMA-connector.
radino UART-Bridgeradino UART 45 640.jpg
radino UART top 640.jpg radino UART bot 640.jpg		UART bridge with power supply and level shifters for all radino modules
radino RS485/RS232-Bridge IP65RS485+RS232 45.JPG
RS485+RS232 Anschluss.JPG		radino RS485-Bridge IP65 outdoor radio adapter for Modbus, Art-Net etc. Includes RS485 driver, RS232 driver, IP65 enclosure.
XBee-PRO Shieldxbee cc1101 45 1000.JPG
xbee bot 45 1000.JPG xbee RPSMA 1000.JPG		XBee Pro adapter for all radino modules
radino DinRail Adapterradino-dinrail top 45 housing.jpgDinRail Adapter connects our RS485 DinRail Bus System to radino modules

Software​

Applications:

  • Sport and fitness sensors
  • Health care sensors
  • Proximity sensors
  • Personal User Interface Devices (PUID)
  • Remote controls
  • Security Tags
  • Household sensors and collector devices
  • Mobile accessories
  • Data logging
  • Any Arduino project

Working with Arduino IDE

The core of radino is an Arduino Micro, so the programming is as easy as programming an Arduino Micro.
For the Arduino IDE Boards Manager the following URL is required:

http://library.radino.cc/Arduino\_1\_8/package\_radino\_radino32\_index.json

Visit radino/radino32 software for more information about the Arduino IDE and installation.

For detailed information about our library for the Arduino IDE look at the radino Library documentation.

Common problems regarding radino modules and the Arduino system: Common problems

The radino nRF8001 has no Arduino library for including. For an own sketch you should copy the radino_nRF8001_UART_LED folder into the sketchbook folder as a new project.

If you don't want to use the Arduino IDE, you can flash an existing .hex file with avrdude. For more information see: Upload binary on radino

Downloads​

Datasheet radino nRF8001
EU conformity radino nRF8001
Eagle library for radino/radino32
Driver for radino
