radino RF233

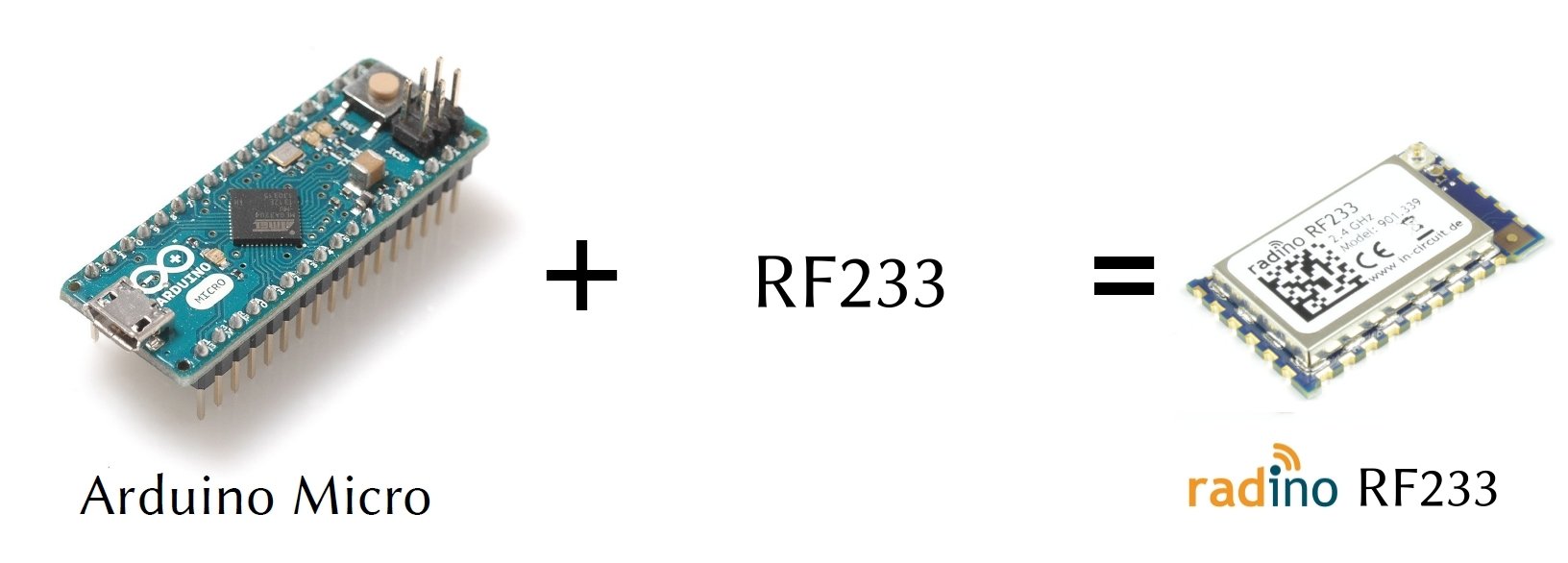

The In-Circuit radino RF233 combines an Arduino Micro with AT86RF233 from Atmel
in a small EMC-compliant enclosure. It is part of our family of pin-to-pin compatible radino Modules.

It's part of the radino-series, which provides full-Arduino-compatible wireless communication devices
in a small form factor, all pin-compatible to each other.

Features:

  • Arduino-compatible (Arduino Micro / Leonardo)
  • Atmel AT86RF233 (http://www.atmel.com/devices/AT86RF233.aspx/)
  • Feature rich, low-power 2.4 GHz transceiver
  • Designed for industrial and consumer IEEE 802.15.4-2006/2011, ZigBee®, SP100, WirelessHART®, ISM, high data rate applications
  • Programmable output power from -17dBm up to +4dBm
  • Receiver sensitivity -101dBm
  • 15 GPIOs (5 PWM, 5 Analog IN)
  • I²C, SPI, UART
  • USB (HID Keyboard & Mouse, virtual UART)
  • High-Performance, Low-Power Microcontroller
  • Arduino Demo Applications available in our library!

Suitable application development boards​

BoardPicturesDescription
radino Leonardoleonardo 45.jpg
Leonardo moduleinlegen.jpg		Carrier board suitable for all radino modules. Includes Arduino connector for easy mounting of Arduino shields. Voltage regulator and Level-Shifters are also included.
radino Spider 2.4G
radino Spider RP-SMA		radino-spider top.jpg
radino-spider-rpsma top.jpg		Breadboard adapter for all radino modules
radino USB Stickradino-usb-stick 45.jpg
radino-usb-stick enclosure.jpg radino-usb-stick top.jpg radino-usb-stick bot.jpg		USB Stick for all radino modules. Available with integrated Chip-antennas and as a version with RP-SMA-connector.
radino UART-Bridgeradino UART 45 640.jpg
radino UART top 640.jpg radino UART bot 640.jpg		UART bridge with power supply and level shifters for all radino modules
radino RS485/RS232-Bridge IP65RS485+RS232 45.JPG
RS485+RS232 Anschluss.JPG		radino RS485-Bridge IP65 outdoor radio adapter for Modbus, Art-Net etc. Includes RS485 driver, RS232 driver, IP65 enclosure.
XBee-PRO Shieldxbee cc1101 45 1000.JPG
xbee bot 45 1000.JPG xbee RPSMA 1000.JPG		XBee Pro adapter for all radino modules
radino DinRail Adapterradino-dinrail top 45 housing.jpgDinRail Adapter connects our RS485 DinRail Bus System to radino modules

Software​

Applications

  • Internet of Things (IoT)
  • Mobile communications
  • Digital home network
  • Industrial monitoring and control
  • Mobile accessories
  • Data logging
  • Home and building automation
  • Any Arduino project

Working with Arduino IDE

The core of radino is an Arduino Micro, so the programming is as easy as programming an Arduino Micro.
For the Arduino IDE Boards Manager the following URL is required:

http://library.radino.cc/Arduino\_1\_8/package\_radino\_radino32\_index.json

Visit radino/radino32 software for more information about the Arduino IDE and installation.

For detailed information about our library for the Arduino IDE look at the radino Library documentation.

Common problems regarding radino modules and the Arduino system: Common problems

The Arduino IDE requires the following includes for using the radino RF233.

#include <SPI.h> #include <IC_RF233.h> #include <IC_RF233_Bridge.h>

If you don't want to use the Arduino IDE, you can flash an existing .hex file with avrdude. For more information see: Upload binary on radino
